2.5. Lines, Planes, and Hyperplanes

from utils import plot_vectors
import numpy as np
import plotly.graph_objects as go

v = (2, -1, 3)

# Create the line spanned by v (all scalar multiples)
t = np.linspace(-2, 2, 100)
line_x = t * v[0]
line_y = t * v[1]
line_z = t * v[2]

fig = plot_vectors([((0, 0, 0), "#3d81f6", r"")], show_axis_labels=True, vdeltax=0.1)

# Add the line spanned by v to the 3D plot
fig.add_trace(
    go.Scatter3d(
        x=line_x,
        y=line_y,
        z=line_z,
        mode="lines",
        line=dict(color="rgba(0,77,64,0.6)", width=5),
        showlegend=False,
        hoverinfo="skip"
    )
)

# Draw small points at (0, 0, 0) and the tip of v
fig.add_trace(
    go.Scatter3d(
        x=[0, v[0]],
        y=[0, v[1]],
        z=[0, v[2]],
        mode="markers",
        marker=dict(size=4, color=["#222", "#222"]),
        showlegend=False,
        hoverinfo="skip"
    )
)

# Add annotations next to the two points: (0,0,0) and (2,-1,3)
fig.add_trace(
    go.Scatter3d(
        x=[0],
        y=[0],
        z=[0],
        mode="text",
        text=["(0, 0, 0)"],
        textposition="top right",
        showlegend=False,
        hoverinfo="skip"
    )
)
fig.add_trace(
    go.Scatter3d(
        x=[v[0]],
        y=[v[1]],
        z=[v[2]],
        mode="text",
        text=[f"({v[0]}, {v[1]}, {v[2]})"],
        textposition="top center",
        showlegend=False,
        hoverinfo="skip"
    )
)

fig.update_layout(
    scene_camera=dict(
        eye=dict(x=-1.2, y=2, z=1.2)
    ),
    scene=dict(
        xaxis=dict(range=[-4, 4]),
        yaxis=dict(range=[-4, 4]),
        zaxis=dict(range=[-6, 6])
    ),
)

fig.show()

Loading...

As we saw in Chapter 2.4, the line shown above is the span of the vector $\color{#3d81f6}\vec v = \begin{bmatrix} 2 \\ -1 \\ 3 \end{bmatrix}$ . It passes through the origin, $(0, 0, 0)$ , and passes through the point $(2, -1, 3)$ .

Ideally, we’d be able to express the line as a function

z = f(x, y)

as we did in the $\mathbb{R}^2$ case, where $y = f(x) = mx + b$ .

Unfortunately, there is no way to express the lines in $\mathbb{R}^3$ , or $\mathbb{R}^4$ , or $\mathbb{R}^n$ for $n > 2$ as a simple function. Why not? If there were some formula for $z$ (the height of the line) in terms of $x$ and $y$ , that would imply that we should be able to plug in any $x$ and any $y$ to get an output $z$ . But, the line above only works for very specific combinations of $x$ and $y$ . For instance, there’s no point on the line above that has $x = 1$ and $y = 1$ . Rather, when $x = 1$ , $y$ is forced to be $-\frac{1}{2}$ , and $z$ is forced to be $\frac{3}{2}$ .

The key idea that I stressed in Chapter 2.4 is that lines are 1-dimensional objects, meaning that the location of any point on the line can be described using a single free variable.

So, the equation of the line above is

L = t\begin{bmatrix} 2 \\ -1 \\ 3 \end{bmatrix}, t \in \mathbb{R}

$t$ here is a free variable – sometimes called a parameter (though this term is confusing in the context of our course) – meaning we can set it to whatever we’d like. The line is the set of all points that can be reached by plugging in different values of $t$ .

Since the line is really a set of points, I should have written it as

L = \{t\begin{bmatrix} 2 \\ -1 \\ 3 \end{bmatrix} \mid t \in \mathbb{R}\}

but I’ll use the former notation for brevity.

Equivalently, you can think of the line as three separate functions of $t$ . Pick a $t$ . Then, $L$ is

\begin{align*} x = 2t \\ y = -t \\ z = 3t \end{align*}

Drag the value of $t$ below to see how $t$ allows us to move along the line.

from utils import plot_vectors
import numpy as np
import plotly.graph_objects as go

v = (2, -1, 3)

# Create the line spanned by v (all scalar multiples)
t = np.linspace(-2, 2, 25)
line_x = t * v[0]
line_y = t * v[1]
line_z = t * v[2]

fig = plot_vectors([((0, 0, 0), "#3d81f6", r"")], show_axis_labels=True, vdeltax=0.1)

# Add the line spanned by v to the 3D plot
fig.add_trace(
    go.Scatter3d(
        x=line_x,
        y=line_y,
        z=line_z,
        mode="lines",
        line=dict(color="rgba(0,77,64,0.6)", width=5),
        showlegend=False,
        hoverinfo="skip"
    )
)

# Add a marker that moves along the line as t changes, controlled by a slider
t_slider = np.linspace(-2, 2, 25)
marker_x = t_slider * v[0]
marker_y = t_slider * v[1]
marker_z = t_slider * v[2]

# Create frames for the moving marker
frames = [
    go.Frame(
        data=[
            go.Scatter3d(
                x=[marker_x[i]],
                y=[marker_y[i]],
                z=[marker_z[i]],
                mode="markers",
                marker=dict(size=8, color="black"),
                showlegend=False,
                hoverinfo="skip"
            )
        ],
        name=str(round(t_slider[i], 2))
    )
    for i in range(len(t_slider))
]

# Find the index where t=0 to set as the default frame
default_t_index = np.argmin(np.abs(t_slider - 0))

# Add slider to control t, set default value to t=0
sliders = [
    {
        "steps": [
            {
                "method": "animate",
                "args": [
                    [str(round(t_slider[i], 2))],
                    {"mode": "immediate", "frame": {"duration": 0, "redraw": True}, "transition": {"duration": 0}}
                ],
                "label": f"t={round(t_slider[i],2)}"
            }
            for i in range(len(t_slider))
        ],
        "currentvalue": {"prefix": ""},
        "pad": {"t": 50},
        "active": default_t_index
    }
]

fig.frames = frames
fig.update_layout(
    scene_camera=dict(
        eye=dict(x=-1.2, y=2, z=1.2)
    ),
    sliders=sliders,
    scene=dict(
        xaxis=dict(range=[-5, 5]),
        yaxis=dict(range=[-5, 5]),
        zaxis=dict(range=[-8, 8])
    ),
    # Increase bottom margin to prevent axis ticks from being cut off
    margin=dict(l=0, r=0, t=0, b=130),
    width=650,
    height=600
)

# Show the marker at t=0 by default
fig.add_trace(
    go.Scatter3d(
        x=[0],
        y=[0],
        z=[0],
        mode="markers+text",
        marker=dict(size=8, color="#aaa"),
        showlegend=False,
        hoverinfo="skip",
        text=["at t = 0, line passes through (0, 0, 0)"],
        textposition="top right",
        textfont=dict(color="#333", size=12)
    )
)

fig.show()

Loading...

The line $L$ above passes through the origin, since if we set $t = 0$ , we get the point $(0, 0, 0)$ . This matches what we’d expect out of the span of a single vector, since $0 {\color{#3d81f6}\vec v} = \vec 0$ .

But how do we express a line that passes through some other fixed point that isn’t the origin? Such a line might not be the span of a single vector, since the span of a single vector is always a line that passes through the origin. But, it’s good to know how to think about lines in this more general form.

Lines in Parametric Form¶

The definition above is not specific to 2-dimensional or 3-dimensional space – it works in any $\mathbb{R}^n$ . (Technically, I’m mixing the meaning of a point and a vector here, but as long as we remember that points describe positions and vectors describe directions, we should be fine.) Here’s a line in $\mathbb{R}^{100}$ :

L = \begin{bmatrix} 1 \\ 2 \\ 3 \\ 4 \\ \vdots \\ 100 \end{bmatrix} + t \begin{bmatrix} -11 \\ 12 \\ -13 \\ 14 \\ \vdots \\ 110 \end{bmatrix}, t \in \mathbb{R}

Note that the parametric form of a line is not unique! Since the parametric definition of a line depends on a “starting point” $\vec p_0$ , we can pick any starting point we’d like. We can also scale the direction vector by any non-zero scalar. So,

L_1 = \begin{bmatrix} 1 \\ 2 \end{bmatrix} + t \begin{bmatrix} -3 \\ 4 \end{bmatrix}, t \in \mathbb{R}

is the same line as

L_2 = \begin{bmatrix} -2 \\ 6 \end{bmatrix} + t \begin{bmatrix} 6 \\ -8 \end{bmatrix}, t \in \mathbb{R}

once you consider all possible values of $t$ in both cases. (I know this is a little confusing, since plugging the same value of $t$ into $L_1$ and into $L_2$ will give you different points, but remember that $L_1$ and $L_2$ are sets, and so we need to consider all possible values of $t$ .)

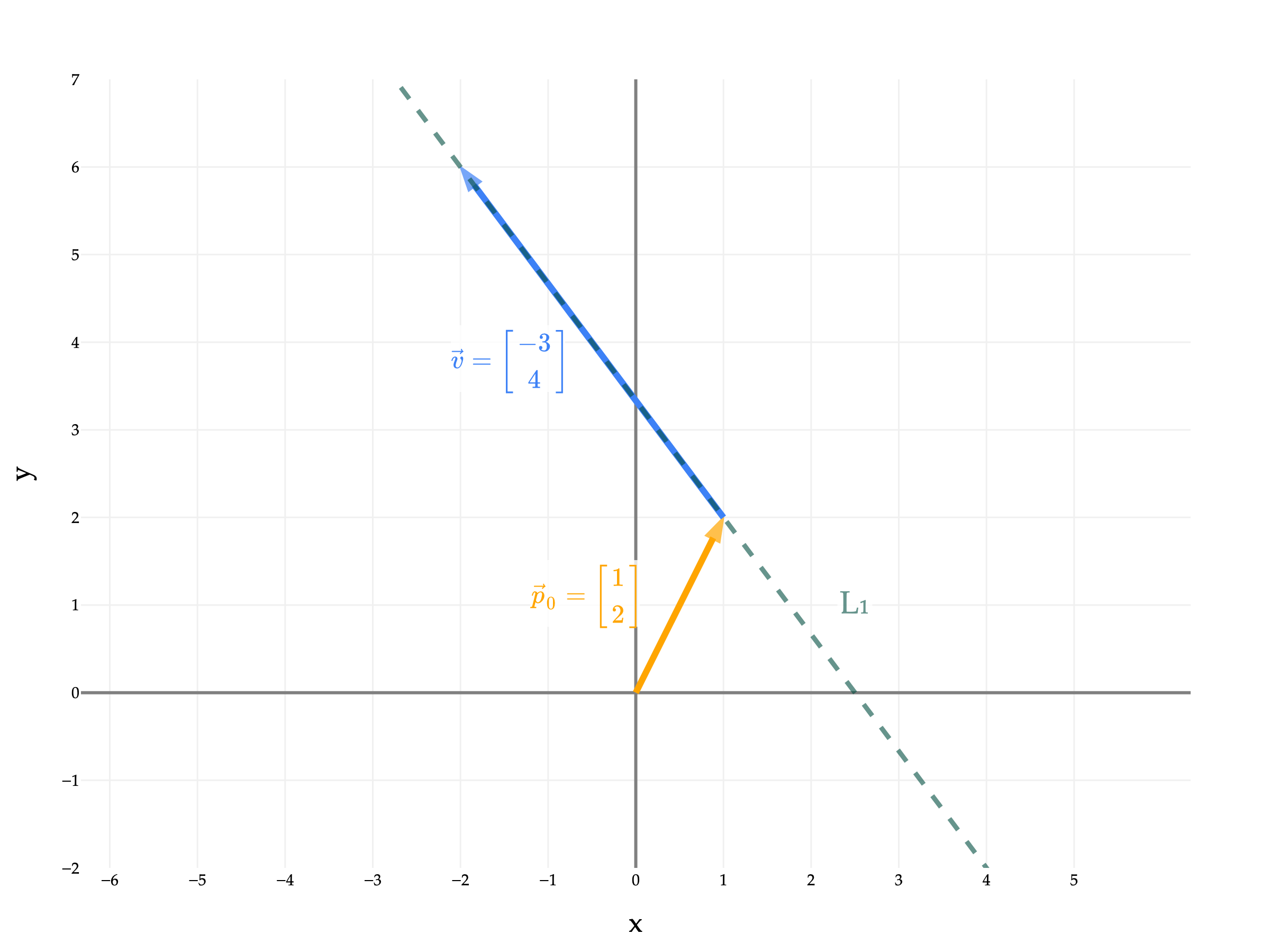

Below is a plot of $L_1 = \begin{bmatrix} 1 \\ 2 \end{bmatrix} + t \begin{bmatrix} -3 \\ 4 \end{bmatrix}, t \in \mathbb{R}$ .

from utils import plot_vectors_non_origin

p0 = (1, 2)
v = (-3, 4)

vectors = [
    # ((start_coords, end_coords), color, label)
    (([0, 0], p0), "orange", r"$\vec p_0 = \begin{bmatrix} 1 \\ 2 \end{bmatrix}$"),
    ((p0, tuple(np.array(p0) + np.array(v))), "#3d81f6", r"$\vec v = \begin{bmatrix} -3 \\ 4 \end{bmatrix}$"),
]

fig = plot_vectors_non_origin(vectors, show_axis_labels=True, vdeltax=1.2)

# Focus the plot on x in [-2, 4]
t = np.linspace(-2, 2, 100)  # Solve for t so that x runs from -2 to 4
line_x = p0[0] + t * v[0]
line_y = p0[1] + t * v[1]

fig.add_trace(
    go.Scatter(
        x=line_x,
        y=line_y,
        mode="lines",
        line=dict(color="rgba(0,77,64,0.6)", width=3, dash="dash"),
        showlegend=False,
        hoverinfo="skip",
        zorder=0
    ),
)

# This annotation indicates the line represents all possible linear combinations of v alone
fig.add_annotation(
    x=1.5 * v[0] + 7,
    y=1.5 * v[1] - 5,
    text="L₁",
    showarrow=False,
    font=dict(size=20, color="rgba(0,77,64,0.6)"),
    bgcolor="rgba(255,255,255,0.8)"
)

fig.update_yaxes(
    scaleanchor="x",
    scaleratio=1,
    range=[-2, 7]
)

fig.update_xaxes(
    range=[-4, 4],
    tickvals=np.arange(-6, 6, 1)
)

fig.show(renderer='png', scale=3)

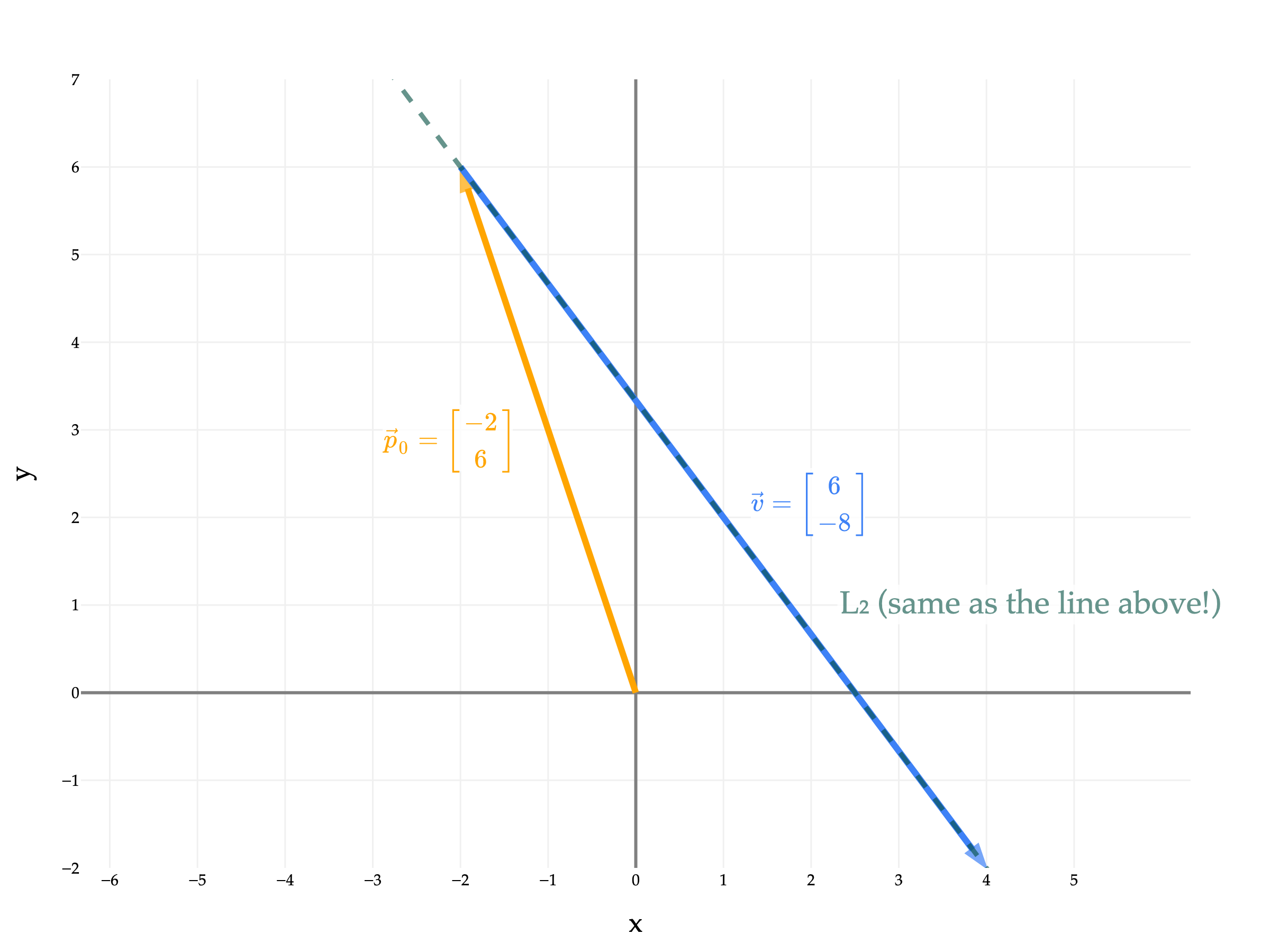

And here’s $L_2 = \begin{bmatrix} -2 \\ 6 \end{bmatrix} + t \begin{bmatrix} 6 \\ -8 \end{bmatrix}, t \in \mathbb{R}$ .

import numpy as np
import plotly.graph_objects as go
from utils import plot_vectors_non_origin

p0 = (-2, 6)
v = (6, -8)

vectors = [
    # ((start_coords, end_coords), color, label)
    (([0, 0], p0), "orange", r"$\vec p_0 = \begin{bmatrix} -2 \\ 6 \end{bmatrix}$"),
    ((p0, tuple(np.array(p0) + np.array(v))), "#3d81f6", r"$\vec v = \begin{bmatrix} 6 \\ -8 \end{bmatrix}$"),
]

fig = plot_vectors_non_origin(vectors, show_axis_labels=True, vdeltax=1.2)

# Focus the plot on x in [-2, 4]
t = np.linspace(-2, 2, 100)  # Solve for t so that x runs from -2 to 4
line_x = p0[0] + t * v[0]
line_y = p0[1] + t * v[1]

fig.add_trace(
    go.Scatter(
        x=line_x,
        y=line_y,
        mode="lines",
        line=dict(color="rgba(0,77,64,0.6)", width=3, dash="dash"),
        showlegend=False,
        hoverinfo="skip",
        zorder=0
    ),
)

# This annotation indicates the line represents all possible linear combinations of v alone
fig.add_annotation(
    x=4.5,
    y=1,
    text="L₂ (same as the line above!)",
    showarrow=False,
    font=dict(size=20, color="rgba(0,77,64,0.6)"),
    bgcolor="rgba(255,255,255,0.8)"
)

fig.update_yaxes(
    scaleanchor="x",
    scaleratio=1,
    range=[-2, 7]
)

fig.update_xaxes(
    range=[-4, 4],
    tickvals=np.arange(-6, 6, 1)
)

fig.show(renderer='png', scale=3)

Note that we end up with the same line, despite the different starting points and direction vectors!

The proceeding activities give you some practice with the parametric form of a line.

Activity 1

Write the line $y = -3x + 5$ in parametric form. There are multiple (infinitely many!) possible answers; give just one.

Solution

The line above passes through the point $(0, 5)$ and is parallel to the vector $\begin{bmatrix} 1 \\ -3 \end{bmatrix}$ , since for every 1 unit we move in the $x$ -direction, we move -3 units in the $y$ -direction. So, the line is:

L = \begin{bmatrix} 0 \\ 5 \end{bmatrix} + t \begin{bmatrix} 1 \\ -3 \end{bmatrix}, t \in \mathbb{R}

To verify that we got the right line, let’s plug in a few values of $t$ and verify that they match the equation $y = -3x + 5$ .

When $t = 0$ , we get the point $(0, 5)$ , and $-3(0) + 5 = 5$ ✅.
When $t = 1$ , we get the point $(1, 2)$ , and $-3(1) + 5 = 2$ ✅.
When $t = -10$ , we get the point $(-10, 35)$ , and $-3(-10) + 5 = 35$ ✅.

(We only need to check two points, since if two lines have the same two points, they must be the same line.)

Activity 2

Find the equation of the line, in parametric form, of the line in $\mathbb{R}^4$ that passes through the points $(5, -1, 3, 2)$ and $(10, -2, 3, 0)$ .

Solution

We know one point on the line; we just need to find a direction vector. One way to do this is to subtract the coordinates of the two points:

\begin{bmatrix} 10 \\ -2 \\ 3 \\ 0 \end{bmatrix} - \begin{bmatrix} 5 \\ -1 \\ 3 \\ 2 \end{bmatrix} = \begin{bmatrix} 5 \\ -1 \\ 0 \\ -2 \end{bmatrix}

So, the line is:

L = \begin{bmatrix} 5 \\ -1 \\ 3 \\ 2 \end{bmatrix} + t \begin{bmatrix} 5 \\ -1 \\ 0 \\ -2 \end{bmatrix}, t \in \mathbb{R}

Plugging in $t = 0$ and $t = 1$ should give us the two points we know are on the line.

Activity 3

Could the line you found in Activity 2 be described as the span of a single vector? Why or why not?

Solution

No, because it doesn’t pass through the origin, and the span of a single vector is always a line that passes through the origin.

Let’s look at $L$ once more:

L = \begin{bmatrix} 5 \\ -1 \\ 3 \\ 2 \end{bmatrix} + t \begin{bmatrix} 5 \\ -1 \\ 0 \\ -2 \end{bmatrix}, t \in \mathbb{R}

Just by looking at the equation above, we don’t know for a fact that it doesn’t pass through the origin, $(0, 0, 0, 0)$ . The fixed point that it is defined relative to, $(5, -1, 3, 2)$ , is not the origin, but the origin might still be on the line if we pick the right value of $t$ .

But, we can verify that that’s not the case by plugging in $t = -1$ , which gives us a 0 in the first two coordinates, but non-zero values in the other coordinates. At $t = -1$ :

L = \begin{bmatrix} 5 \\ -1 \\ 3 \\ 2 \end{bmatrix} - 1 \begin{bmatrix} 5 \\ -1 \\ 0 \\ -2 \end{bmatrix} = \begin{bmatrix} 0 \\ 0 \\ 3 \\ 4 \end{bmatrix}

There’s no value of $t$ other than -1 such that $5 + t(5) = 0$ , so no other value of $t$ will give us the point $(0, 0, 0, 0)$ .

Activity 4

Find the equation of the line, in standard form, that is orthogonal to the line

3x + 4y + 12 = 0

and passes through the point $(9, 5)$ .

Solution

What does it mean for two lines to be orthogonal? In $\mathbb{R}^2$ or $\mathbb{R}^3$ , it’s sufficient to say that they’re orthogonal if they intersect at a right angle, because this is an idea we can visualize.

But more generally, we should think of two lines as orthogonal if their direction vectors are orthogonal when written in parametric form.

That is, $L_1 = \vec p_0 + t \vec v_1$ and $L_2 = \vec q_0 + s \vec v_2$ are orthogonal if $\vec v_1 \cdot \vec v_2 = 0$ . The values of the starting points don’t change whether the lines are orthogonal, that just changes where they intersect.

Let’s return to our problem, which involves finding a line orthogonal to $3x + 4y + 12 = 0$ . What is this line in parametric form? Rearranging it to slope-intercept form gives us

y = -\frac{3}{4}x - 3

which means that for every 1 unit we move in the $x$ -direction, we move $-\frac{3}{4}$ units in the $y$ -direction. So, the direction vector of the line is $\begin{bmatrix} 1 \\ -\frac{3}{4} \end{bmatrix}$ , or equivalently, $\begin{bmatrix} 4 \\ -3 \end{bmatrix}$ (I multiplied by 4 to get nice numbers in the direction vector; as we saw earlier, any non-zero scalar multiple of a direction vector will give us the same line).

You might notice a general pattern from this: the direction vector for the line $ax + by + c = 0$ is $\begin{bmatrix} b \\ -a \end{bmatrix}$ . I’d avoid memorizing this, though, and would rather you derive it from scratch every time (it’s not a good use of your memory to memorize this).

We want a line orthogonal to $3x + 4y + 12 = 0$ , so we need a direction vector orthogonal to $\begin{bmatrix} 4 \\ -3 \end{bmatrix}$ . A natural choice is to create a direction vector of $\begin{bmatrix} 3 \\ 4 \end{bmatrix}$ , since $\begin{bmatrix} 3 \\ 4 \end{bmatrix} \cdot \begin{bmatrix} 4 \\ -3 \end{bmatrix} = 0$ .

So, in parametric form, one way to express the line we’re looking for is

L = \begin{bmatrix} 9 \\ 5 \end{bmatrix} + t \begin{bmatrix} 3 \\ 4 \end{bmatrix}, t \in \mathbb{R}

But we want our new line in standard form, i.e. $ax + by + c = 0$ . To get this, we can look at the direction vector of the new line, $\begin{bmatrix} 3 \\ 4 \end{bmatrix}$ and recognize that it’s saying to move 4 units in the $y$ -direction for every 3 units we move in the $x$ -direction, implying a slope of $\frac{4}{3}$ . The new line we’re looking for then is $y = \frac{4}{3}x + w_0$ , or equivalently $4x - 3y + c = 0$ .

To find $c$ , we can plug in the point $(9, 5)$ into the equation:

4(9) - 3(5) + c = 0 \implies 36 - 15 + c = 0 \implies c = -21

So, the line we’re looking for is $\boxed{4x - 3y - 21 = 0}$ .

You might also notice that the original line $3x + 4y + 12 = 0$ has coefficients of 3 and 4 on $x$ and $y$ , and the direction vector of the line orthogonal to it is $\begin{bmatrix} 3 \\ 4 \end{bmatrix}$ . Keep this in mind, as it’ll be useful in the section below on planes.

Planes¶

Lines are 1-dimensional objects, whether they exist in $\mathbb{R}^2$ , or $\mathbb{R}^3$ , or $\mathbb{R}^{47}$ , or in general $\mathbb{R}^n$ .

Similarly, planes are 2-dimensional objects. In $\mathbb{R}^2$ , since there only exist two dimensions in the first place, the entirety of the coordinate system is one single plane, which we call the $xy$ -plane.

Let’s start by building intuition for planes in $\mathbb{R}^3$ , the most natural setting for them, and then generalize.

Planes in $\mathbb{R}^3$ ¶

For example, let’s draw:

$\color{#3d81f6} 3x + 4y - 5z - 12 = 0$ , or equivalently $z = \frac{3}{5}x + \frac{4}{5}y + \frac{12}{5}$
$\color{orange} -5x - 3y - z = 0$ , or equivalently $z = -5x - 3y$

You’ll notice that they intersect at a line. This is not a coincidence; any two non-parallel planes in $\mathbb{R}^3$ will intersect at a line.

from hw04_util import draw_equations

fig = draw_equations([[3, 4, -5, -12], [-5, -3, -1, 0]])
fig.show()

Loading...

Note that both planes are flat surfaces that extend infinitely in all directions. The fact that the blue plane is cut off at the edges is just due to how I’m plotting the planes, not that there’s some boundary within which the plane is defined.

You’ll notice that the blue plane is relatively shallow, while the orange plane is relatively steep. Why?

I find the form $z = Ax + By + C$ easier to understand intuitively, since it shows the rate of change of $z$ with respect to $x$ and $y$ more clearly. Starting with $z = Ax + By + C$ , we have that

\frac{\partial z}{\partial x} = A, \quad \frac{\partial z}{\partial y} = B

In this example, the blue plane has $A = \frac{3}{5}$ and $B = \frac{4}{5}$ , while the orange plane has $A = -5$ and $B = -3$ , which explains their relative steepness.

That said, be careful, since a plane need not have a non-zero coefficient on $z$ . For example, $3x + 4y = 0$ and $3x + 4y = 5$ is are perfectly valid planes, and they happen to be parallel.

draw_equations([[3, 4, 0, 0], [3, 4, 0, 5]])

Loading...

A key property of planes is that they are flat. Sure, we know that intuitively, but what does it actually mean?

This property is not true in general for other surfaces.

import numpy as np
import plotly.graph_objects as go

# --- Plot 1: Plane with secant line ---

def plane_z(x, y):
    return (3*x + 4*y - 12)/5

p1 = np.array([1, 1, plane_z(1, 1)])
p2 = np.array([3, -2, plane_z(3, -2)])

xx, yy = np.meshgrid(np.linspace(-2, 4, 20), np.linspace(-3, 3, 20))
zz = plane_z(xx, yy)

plane_trace = go.Surface(
    x=xx, y=yy, z=zz,
    colorscale=[[0, '#3d81f6'], [1, '#3d81f6']],
    opacity=0.7, showscale=False
)

secant_trace = go.Scatter3d(
    x=[p1[0], p2[0]],
    y=[p1[1], p2[1]],
    z=[p1[2], p2[2]],
    mode='lines+markers',
    line=dict(color='black', width=6),
    marker=dict(size=6, color='black'),
    name='Secant Line'
)

fig1 = go.Figure(data=[plane_trace, secant_trace])
fig1.update_layout(
    title="",
    scene=dict(
        xaxis_title='x', yaxis_title='y', zaxis_title='z',
        aspectmode='cube',
        xaxis=dict(
            backgroundcolor='white',
            gridcolor='#f0f0f0',
            zerolinecolor='#f0f0f0'
        ),
        yaxis=dict(
            backgroundcolor='white',
            gridcolor='#f0f0f0',
            zerolinecolor='#f0f0f0'
        ),
        zaxis=dict(
            backgroundcolor='white',
            gridcolor='#f0f0f0',
            zerolinecolor='#f0f0f0'
        ),
    ),
    margin=dict(l=0, r=0, b=0, t=30),
    paper_bgcolor='white',
    plot_bgcolor='white',
    font=dict(family='Palatino, serif')
)

# --- Plot 2: Curved surface with secant line ---

def surf_z(x, y):
    return x**2 + y**2

q1 = np.array([1, 1, surf_z(1, 1)])
q2 = np.array([-1, -2, surf_z(-1, -2)])

xx2, yy2 = np.meshgrid(np.linspace(-2, 2, 40), np.linspace(-2, 2, 40))
zz2 = surf_z(xx2, yy2)

surf_trace = go.Surface(
    x=xx2, y=yy2, z=zz2,
    colorscale=[[0, 'orange'], [1, 'orange']],
    opacity=0.7, showscale=False
)

secant_trace2 = go.Scatter3d(
    x=[q1[0], q2[0]],
    y=[q1[1], q2[1]],
    z=[q1[2], q2[2]],
    mode='lines+markers',
    line=dict(color='black', width=6),
    marker=dict(size=6, color='black'),
    name='Secant Line'
)

fig2 = go.Figure(data=[surf_trace, secant_trace2])
fig2.update_layout(
    title="Not a plane: Secant lines may be above or below the surface",
    scene=dict(
        xaxis_title='x', yaxis_title='y', zaxis_title='z',
        aspectmode='cube',
        xaxis=dict(
            backgroundcolor='white',
            gridcolor='#f0f0f0',
            zerolinecolor='#f0f0f0'
        ),
        yaxis=dict(
            backgroundcolor='white',
            gridcolor='#f0f0f0',
            zerolinecolor='#f0f0f0'
        ),
        zaxis=dict(
            backgroundcolor='white',
            gridcolor='#f0f0f0',
            zerolinecolor='#f0f0f0',
        ),
    ),
    margin=dict(l=0, r=0, b=0, t=30),
    paper_bgcolor='white',
    plot_bgcolor='white',
    font=dict(family='Palatino, serif')
)

from plotly.subplots import make_subplots

fig = make_subplots(
    rows=1, cols=2,
    specs=[[{'type': 'scene'}, {'type': 'scene'}]],
    subplot_titles=("Plane: Any secant line is<br><b>entirely</b> on the plane", "Not a plane: Secant lines<br> may be above or below<br>the surface"),
    horizontal_spacing=0
)

for trace in fig1.data:
    fig.add_trace(trace, row=1, col=1)
for trace in fig2.data:
    fig.add_trace(trace, row=1, col=2)

fig.update_layout(
    height=350, width=700,
    showlegend=False,
    margin=dict(l=0, r=0, b=30, t=80),
    paper_bgcolor='white',
    plot_bgcolor='white',
    font=dict(family='Palatino, serif')
)

# Update both scenes for grid and background
fig.update_scenes(
    xaxis=dict(
        backgroundcolor='white',
        gridcolor='#f0f0f0',
        zerolinecolor='#f0f0f0'
    ),
    yaxis=dict(
        backgroundcolor='white',
        gridcolor='#f0f0f0',
        zerolinecolor='#f0f0f0'
    ),
    zaxis=dict(
        backgroundcolor='white',
        gridcolor='#f0f0f0',
        zerolinecolor='#f0f0f0',
    )
)

fig.show()

Loading...

Finding the Equation of a Plane in $\mathbb{R}^3$ ¶

I first mentioned planes back in Chapter 2.1, when we intuitively discussed the fact that the set of all linear combinations of two non-collinear vectors in $\mathbb{R}^3$ forms a plane.

So, given two vectors ${\color{orange} \vec u = \begin{bmatrix} u_1 \\ u_2 \\ u_3 \end{bmatrix}}, {\color{#3d81f6} \vec v = \begin{bmatrix} v_1 \\ v_2 \\ v_3 \end{bmatrix}} \in \mathbb{R}^3$ , how do we find the equation of the plane they span, in standard form?

from utils import plot_vectors
import numpy as np
import plotly.graph_objects as go

v1 = (5, 2, 1)
v2 = (-2, 3, 0)

fig = plot_vectors([(v1, "orange", r"u"),
                    (v2, "#3d81f6", r"v"),
                    ], show_axis_labels=True, vdeltax=0.3, vdeltay=1)

# Add the plane spanned by v1 and v2
plane_extent = 20
num_points = 3

s_range = np.linspace(-plane_extent, plane_extent, num_points)
t_range = np.linspace(-plane_extent, plane_extent, num_points)
s_grid, t_grid = np.meshgrid(s_range, t_range)

plane_x = s_grid * v1[0] + t_grid * v2[0]
plane_y = s_grid * v1[1] + t_grid * v2[1]
plane_z = s_grid * v1[2] + t_grid * v2[2]

fig.add_trace(go.Surface(
    x=plane_x,
    y=plane_y,
    z=plane_z,
    opacity=0.8,
    colorscale=[[0, 'rgba(61,129,246,0.3)'], [1, 'rgba(61,129,246,0.3)']],
    showscale=False,
))

fig.update_xaxes(
    scaleanchor="y",
    scaleratio=1,
    tickvals=np.arange(-10, 10, 1)
)

fig.update_yaxes(
    scaleanchor="x",
    scaleratio=1,
    tickvals=np.arange(-10, 10, 1)
)

fig.update_layout(
    xaxis_range=[-10, 10],
    yaxis_range=[-10, 10],
    width=600,
    height=600,
    scene_camera=dict(
        eye=dict(x=-1.2, y=2, z=1.2)
    ),
    scene=dict(
        aspectmode='cube',
    ),
)

fig.show()

Loading...

If the plane they span is to be in standard form, it must be of the form $ax + by + cz + d = 0$ . We know that the plane they span must contain the origin, $(0, 0, 0)$ , which comes from the fact that the span of any two vectors must contain the origin (created by $0{\color{orange} \vec u} + 0{\color{#3d81f6} \vec v} = \vec 0$ ). This tells us $d = 0$ .

So, I’m searching for a plane of the form $ax + by + cz = 0$ . Plugging in $\color{orange} \vec u = \begin{bmatrix} u_1 \\ u_2 \\ u_3 \end{bmatrix}$ tells me that $a$ , $b$ , and $c$ must satisfy

a{\color{orange} u_1} + b{\color{orange} u_2} + c{\color{orange} u_3} = 0

Similarly, $a$ , $b$ , and $c$ must also satisfy

a{\color{#3d81f6} v_1} + b{\color{#3d81f6} v_2} + c{\color{#3d81f6} v_3} = 0

Look closely. The left-hand side of both equations looks a lot like the dot product of $\begin{bmatrix} a \\ b \\ c \end{bmatrix}$ with each of $\color{orange} \vec u$ and $\color{#3d81f6} \vec v$ . Since those dot products must both be 0 (coming from the right-hand side of each equation), we’re really just looking for a vector $\begin{bmatrix} a \\ b \\ c \end{bmatrix}$ that’s orthogonal to both $\color{orange} \vec u$ and $\color{#3d81f6} \vec v$ .

There are infinitely many vectors orthogonal to a particular pair of vectors $\color{orange} \vec u$ and $\color{#3d81f6} \vec v$ , meaning there are infinitely many possible values of $a$ , $b$ , and $c$ that satisfy the above equations. (There are more equations than unknowns.)

But, one property that all of these vectors share is that they all point in the same direction – if $\begin{bmatrix} a \\ b \\ c \end{bmatrix}$ is orthogonal to $\color{orange} \vec u$ and $\color{#3d81f6} \vec v$ , then so is any non-zero scalar multiple of $\begin{bmatrix} a \\ b \\ c \end{bmatrix}$ .

from utils import plot_vectors
import numpy as np
import plotly.graph_objects as go

v1 = (5, 2, 1)
v2 = (-2, 3, 0)

fig = plot_vectors([(v1, "orange", r"u"),
                    (v2, "#3d81f6", r"v"),
                    ], show_axis_labels=True, vdeltax=1, vdeltay=1)

# Add the plane spanned by v1 and v2
plane_extent = 20
num_points = 3

s_range = np.linspace(-plane_extent, plane_extent, num_points)
t_range = np.linspace(-plane_extent, plane_extent, num_points)
s_grid, t_grid = np.meshgrid(s_range, t_range)

plane_x = s_grid * v1[0] + t_grid * v2[0]
plane_y = s_grid * v1[1] + t_grid * v2[1]
plane_z = s_grid * v1[2] + t_grid * v2[2]

fig.add_trace(go.Surface(
    x=plane_x,
    y=plane_y,
    z=plane_z,
    opacity=0.8,
    colorscale=[[0, 'rgba(61,129,246,0.3)'], [1, 'rgba(61,129,246,0.3)']],
    showscale=False,
))

# Compute the cross product of v1 and v2
v1_arr = np.array(v1)
v2_arr = np.array(v2)
cross = np.cross(v1_arr, v2_arr)

# Draw the line spanned by the cross product through the origin as a dotted line
line_extent = 10
line_points = np.linspace(-line_extent, line_extent, 2)
line_x = line_points * cross[0]
line_y = line_points * cross[1]
line_z = line_points * cross[2]

fig.add_trace(
    go.Scatter3d(
        x=line_x,
        y=line_y,
        z=line_z,
        mode="lines",
        line=dict(color="rgba(0,77,64,0.6)", width=3, dash="dot"),
        showlegend=False,
        hoverinfo="skip"
    ),
)
# Add annotation at the midpoint of the line in the same color
mid_idx = len(line_points) // 2
fig.add_trace(
    go.Scatter3d(
        x=[5],y=[5],z=[5],
        mode="text",
        text=["All vectors orthogonal to u and v lie on this line"],
        textposition="top center",
        textfont=dict(color="rgba(0,77,64,0.9)", size=14),
        showlegend=False,
        hoverinfo="skip"
    )
)

fig.update_xaxes(
    scaleanchor="y",
    scaleratio=1,
    tickvals=np.arange(-10, 10, 1)
)

fig.update_yaxes(
    scaleanchor="x",
    scaleratio=1,
    tickvals=np.arange(-10, 10, 1)
)

fig.update_layout(
    scene=dict(
        xaxis=dict(range=[-10, 10]),
        yaxis=dict(range=[-10, 10]),
        zaxis=dict(range=[-10, 10]),
        aspectmode='cube',
    ),
    width=600,
    height=600,
    scene_camera=dict(
        eye=dict(x=-1.2, y=2, z=1.2)
    ),
)

fig.show()

Loading...

One particular vector (i.e. set of coefficients $a$ , $b$ , and $c$ ) that satisfies the above equations is the cross product of $\color{orange} \vec u$ and $\color{#3d81f6} \vec v$ . The cross product of vectors $\color{orange} \vec u$ and $\color{#3d81f6} \vec v$ is defined only for vectors in $\mathbb{R}^3$ , and is given by

{\color{orange} \vec u} \times {\color{#3d81f6} \vec v} = \begin{bmatrix} {\color{orange} u_2}{\color{#3d81f6} v_3}- {\color{orange} u_3}{\color{#3d81f6} v_2} \\ {\color{orange} u_3}{\color{#3d81f6} v_1} - {\color{orange} u_1}{\color{#3d81f6} v_3} \\ {\color{orange} u_1}{\color{#3d81f6} v_2} - {\color{orange} u_2}{\color{#3d81f6} v_1} \end{bmatrix}

There’s a lot of meaning baked into the definition of the cross product, but most of it is more relevant in a traditional engineering or physics context. For example, the cross product is anticommutative, meaning that the order you compute it in matters.

{\color{orange} \vec u} \times {\color{#3d81f6} \vec v} = -({\color{#3d81f6} \vec v} \times {\color{orange} \vec u})

That’s the type of statement we won’t bother investigating further here. But, the activities below are important to attempt.

Let’s use the cross product to concretely find the equation of the plane planned by two vectors in $\mathbb{R}^3$ . Suppose $\color{orange} \vec u = \begin{bmatrix} 5 \\ 2 \\ 1 \end{bmatrix}$ and $\color{#3d81f6} \vec v = \begin{bmatrix} -2 \\ 3 \\ 0 \end{bmatrix}$ .

The cross product of $\color{orange} \vec u$ and $\color{#3d81f6} \vec v$ is given by

{\color{orange} \vec u} \times {\color{#3d81f6} \vec v} = \begin{bmatrix} {\color{orange}2} \cdot {\color{#3d81f6}0} - {\color{orange}1} \cdot {\color{#3d81f6}3} \\ {\color{orange}1} \cdot {\color{#3d81f6}(-2)} - {\color{orange}5} \cdot {\color{#3d81f6}0} \\ {\color{orange}5} \cdot {\color{#3d81f6}3} - {\color{orange}2} \cdot {\color{#3d81f6}(-2)} \end{bmatrix} = \begin{bmatrix} -3 \\ -2 \\ 19 \end{bmatrix}

The equation of the plane spanned by $\color{orange} \vec u$ and $\color{#3d81f6} \vec v$ is then given by

-3x - 2y + 19z = 0

The vector that the cross product returns is sometimes called the normal vector of the plane. Normal is another term for orthogonal or perpendicular. For the plane $-3x - 2y + 19z = 0$ , the normal vector is $\begin{bmatrix} -3 \\ -2 \\ 19 \end{bmatrix}$ , as that vector is orthogonal to the two vectors $\color{orange} \vec u$ and $\color{#3d81f6} \vec v$ that span the plane. When we’re looking at the standard form of the equation of a plane in $\mathbb{R}^3$ , the normal vector is just the coefficients of $x$ , $y$ , and $z$ in the equation.

Planes in Parametric Form¶

The cross product is a construct that only exists in 3-dimensions. Beyond $\mathbb{R}^3$ , we can’t express planes in standard form, the same way we can’t express lines in $\mathbb{R}^3$ in standard form. Instead, we’ll need to resort to their parametric form.

This definition is very similar to the definition of the parametric form of a line in $\mathbb{R}^n$ , it’s just that instead of one direction vector, we have two. For instance,

P = \begin{bmatrix} 3 \\ 8 \\ 1 \\ 2 \\ -7 \\ \pi \end{bmatrix} + s\begin{bmatrix} 1 \\ 0 \\ 2 \\ -1 \\ 0 \\ 0 \end{bmatrix} + t\begin{bmatrix} 5 \\ 2 \\ -1 \\ 3 \\ 1 \\ 0 \end{bmatrix}

is a plane in $\mathbb{R}^6$ , and you should think of it as a 2-dimensional “slice” of 6-dimensional space.

Hyperplanes¶

So far, we’ve learned how to think of lines and planes in arbitrarily high dimensions. We can’t visualize a plane in $\mathbb{R}^{76}$ , but we have some intuition that it’s a 2-dimensional “slice” of 76-dimensional space.

On the topic of slices:

A line is a 1-dimensional “slice” of 2-dimensional space.
A plane is a 2-dimensional “slice” of 3-dimensional space.

In general, a hyperplane is an $(n-1)$ -dimensional “slice” of $n$ -dimensional space.

Example: $2x_1 + 3x_2 - 5 = 0$ is a hyperplane in $\mathbb{R}^2$ , defined by the vector $\vec a = \begin{bmatrix} 2 \\ 3 \end{bmatrix}$ and $b = -5$ . This is just a line in $\mathbb{R}^2$ . If it helps, relabel $x_1$ and $x_2$ as $x$ and $y$ .
Example: $x_1 + x_2 + x_3 = 0$ is a hyperplane in $\mathbb{R}^3$ , defined by the vector $\vec a = \begin{bmatrix} 1 \\ 1 \\ 1 \end{bmatrix}$ and $b = 0$ . This is just a plane in $\mathbb{R}^3$ . If it helps, relabel $x_1, x_2, x_3$ as $x, y, z$ .

Hyperplanes are hugely important in machine learning, particularly in the context of classification. You should think of a hyperplane in $\mathbb{R}^n$ as a boundary that divides all of $\mathbb{R}^n$ into two halves: everything is either above or below.

For example, the hyperplane $\begin{bmatrix} -3 \\ -2 \\ 19 \end{bmatrix} \cdot \vec x = 0$ is shown below. Any point in $\mathbb{R}^3$ is either above it, meaning $\begin{bmatrix} -3 \\ -2 \\ 19 \end{bmatrix} \cdot \vec x > 0$ , or below it, meaning $\begin{bmatrix} -3 \\ -2 \\ 19 \end{bmatrix} \cdot \vec x < 0$ .

import numpy as np
import plotly.graph_objects as go

v1 = (5, 2, 1)
v2 = (-2, 3, 0)

plane_extent = 20
num_points = 3

s_range = np.linspace(-plane_extent, plane_extent, num_points)
t_range = np.linspace(-plane_extent, plane_extent, num_points)
s_grid, t_grid = np.meshgrid(s_range, t_range)

plane_x = s_grid * v1[0] + t_grid * v2[0]
plane_y = s_grid * v1[1] + t_grid * v2[1]
plane_z = s_grid * v1[2] + t_grid * v2[2]

fig = go.Figure()

fig.add_trace(go.Surface(
    x=plane_x,
    y=plane_y,
    z=plane_z,
    opacity=0.8,
    colorscale=[[0, 'rgba(61,129,246,0.8)'], [1, 'rgba(61,129,246,0.8)']],
    showscale=False,
))

fig.update_layout(
    scene=dict(
        xaxis=dict(
            range=[-10, 10],
            title='x₁',
            backgroundcolor='white',
            gridcolor='#f0f0f0',
            zerolinecolor='#f0f0f0',
            showbackground=True,
            # tickfont=dict(family='Palatino'),
            # titlefont=dict(family='Palatino')
        ),
        yaxis=dict(
            range=[-10, 10],
            title='x₂',
            backgroundcolor='white',
            gridcolor='#f0f0f0',
            zerolinecolor='#f0f0f0',
            showbackground=True,
            # tickfont=dict(family='Palatino'),
            # titlefont=dict(family='Palatino')
        ),
        zaxis=dict(
            range=[-10, 10],
            title='x₃',
            backgroundcolor='white',
            gridcolor='#f0f0f0',
            zerolinecolor='#f0f0f0',
            showbackground=True,
            # tickfont=dict(family='Palatino'),
            # titlefont=dict(family='Palatino')
        ),
        aspectmode='cube',
    ),
    width=600,
    height=600,
    scene_camera=dict(
        eye=dict(x=-1.2, y=2, z=1.2)
    ),
    font=dict(family='Palatino'),
    paper_bgcolor='white',
    plot_bgcolor='white'
)

fig.show()

Loading...

I’ll add more to this section on hyperplanes as needed, but I wanted to get this out to you (1) before the midterm and (2) so you have context of what comes after lines and planes.

Lines¶

Intuition in $\mathbb{R}^2$ and $\mathbb{R}^3$ ¶

Lines in Parametric Form¶

Planes¶

Planes in $\mathbb{R}^3$ ¶

Finding the Equation of a Plane in $\mathbb{R}^3$ ¶

Planes in Parametric Form¶

Hyperplanes¶

Lines¶

Intuition in R2\mathbb{R}^2R2 and R3\mathbb{R}^3R3¶

Lines in Parametric Form¶

Planes¶

Planes in R3\mathbb{R}^3R3¶

Finding the Equation of a Plane in R3\mathbb{R}^3R3¶

Planes in Parametric Form¶

Hyperplanes¶

Intuition in $\mathbb{R}^2$ and $\mathbb{R}^3$ ¶

Planes in $\mathbb{R}^3$ ¶

Finding the Equation of a Plane in $\mathbb{R}^3$ ¶
